Led Wall Panels Display
14.7' x 7.9' FT
Interactive learning spaces move fast; kids up close, hands pointing at details, instructors switching content on the fly, and groups viewing from every direction. These ultra high-resolution 1.25mm LED displays are built for that kind of environment: sharp enough for close-range discovery, bright enough for well-lit rooms, and smooth enough for motion-heavy content like simulations, timelines, maps, and science visuals.
specs
Pixel Pitch: 1.25
Pixel Density: 512 x 384 per panel
High Refresh Rate: 7680Hz
LED Configuration: 3-in-1 SMD1010 LED
Size: 640 x 480 x 75 mm / 25.2" x 18.9" x 3"
Weight: 10Kg
Full Front Service: Magnetic Modules
Module Quantity: 6 per panel 320 x 160mm
In an interactive center, people don’t watch from across the room; they walk right up to the content. A 1.25mm pixel pitch keeps small text, thin lines, labels, and micro-details clean even at short distances. That makes it ideal for museum-style learning, STEM labs, science centers, and training environments where clarity needs to hold up at “reading distance.”
Distance 3ft
1.25MM
A learning wall often runs high-motion visuals: animated diagrams, transitions between modules, interactive-style UI, or video content that can’t stutter. With 7680Hz refresh and a NovaStar A8s receiving card, playback stays stable and clean, even during fast scene changes. Whether you’re showing a moving solar system model or a quick lesson carousel, the content remains smooth and professional
Interactive centers are public-facing, often open daily, and the wall is usually part of the core attraction. This setup includes full front service with magnetic modules, so maintenance can be done quickly without dismantling the structure or shutting down the entire area. It’s a practical design choice for facilities that want less downtime and simpler upkeep.
Configurations That Match Your Layout
Configurations That Match Your Layout
This method works well for temporary exhibits, traveling installations, pop-up learning experiences, or environments that require occasional reconfiguration. The structure provides stability while allowing the display to be repositioned or expanded as educational programs change.
It creates a clean, integrated look where the LED screen becomes part of the architecture itself; perfect for timelines, educational storytelling walls, or interactive knowledge hubs that operate daily. It also keeps floor space clear, improving visitor flow and accessibility.
By suspending the LED wall, institutions can create striking visual focal points visible from multiple levels. This approach works especially well for immersive learning experiences, entrance displays, and large-format educational content that needs to command attention from a distance.
Rather than focusing only on brightness or resolution, Mirackle prioritizes panel uniformity and long-term visual balance, ensuring that colors, contrast, and brightness remain consistent across the entire display surface. This is especially important in learning centers, where uneven tones or visual fatigue can distract from the educational experience.
Designed for Long Operating Hours
Educational facilities often run long schedules: weekday programs, weekend traffic, field trips, and extended events. These panels are built to handle sustained use with a 100,000-hour operating life and protection suited for real environments. It’s a durable system built for ongoing daily operation, not short-term installs.
Our LED panels feature reinforced corners and protective caps, ensuring enhanced durability and safety during transport and installation. This innovative design reduces the risk of damage, extends the lifespan of the panels, and minimizes maintenance needs, making them ideal for both indoor and outdoor applications.
When a display is part of the experience, delays aren’t acceptable. This system is backed by U.S.-based technical support, all parts in stock, and a 5-year warranty that includes all parts; so your team can keep the wall running without long waiting periods.
Turn-Key Packages
Turn-Key
Packages
5-Year Warranty
5-Year
Warranty
Technical Support
Technical
Support
Package Includes
LED video tiles
for rigging (*)
included
Link Cables
link cables
Edison Cables
cable
A True Learning Surface, Not Just a Screen
With ultra-fine 1.25mm resolution, short-distance clarity, wide-angle visibility, and a service-friendly modular build, this 14.7' x 7.9' LED system turns interactive learning content into a centerpiece… Built to educate, engage, and hold up to daily real-world use.
technical specifications
- Full Front Service / Magnetic Modules
- Turn-key solution
- Easy installation
- Ground support compatible (sold separately)
- Download full specifications here
- Technical support available
- 5-year warranty included for all parts
- USA based
- In stock
- Operation Power: 100~240V 50-60Hz
- Max. Power Consumption: 200W/per panel
- Ave. Power Consumption: 120W/per panel
- Connections Power/Data: Locking power In/Out; Data EtherCon In/Out
- Control Mode: NovaStar Synchronous System with Control via DVI
- Frame Update Frequency: 50-60Hz
- Scan Mode: 1/28
- Refresh Rate: 7680Hz
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Brightness Correction: Pixel, Module, Cabinet
- Pixel Pitch: 1.25mm
- High Refresh Rate: 7680Hz
- Full Front Service / Magnetic Modules
- Novastar A8s receiving card
- LED Configuration: 3-in-1 SMD1010 LED
- Pixel Density: 512 x 384 per panel
- Size: 640 x 480 x 75 mm / 25.2″ x 18.9″ x 3″
- Module Quantity: 6 per panel 320 x 160mm
- Weight: 10Kg
- Brightness: 1200 NITS
- View Angle: Horizontal 160°/Vertical 160°
- Distance: 3ft.
- Brightness Adjustment: 0~100% 100 Levels
- (35) NovaStar P1.25mm Indoor LED video tiles

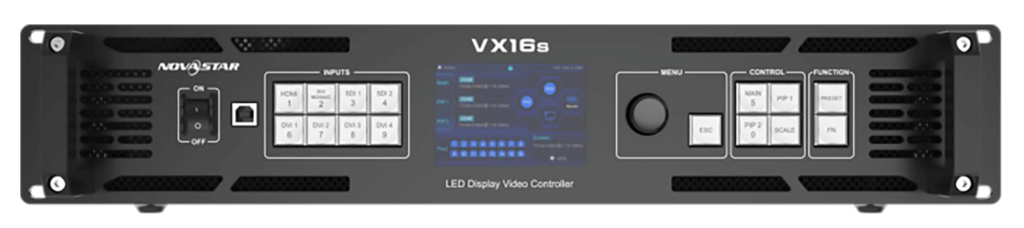

- (1) Video Processor Vx16 with HDMI, DVI
- (1) NovaStar Mctrl300 sending card
- (7) Hanging bars for rigging (*)
- (12) Cat6 25ft cable
- (35) Data Cat6 link cables
- (35) Locking Power Link Cables
- (5) Locking Power to Edison Cables
- Spare parts included
- Operating Life: 100,000 Hours
- Protection Level: IP45 (Front and Back)
