LED Market P1.25mm 10.5′ x 6.3′ LED Panels for Home Cinemas
10.5' x 6.3' FT

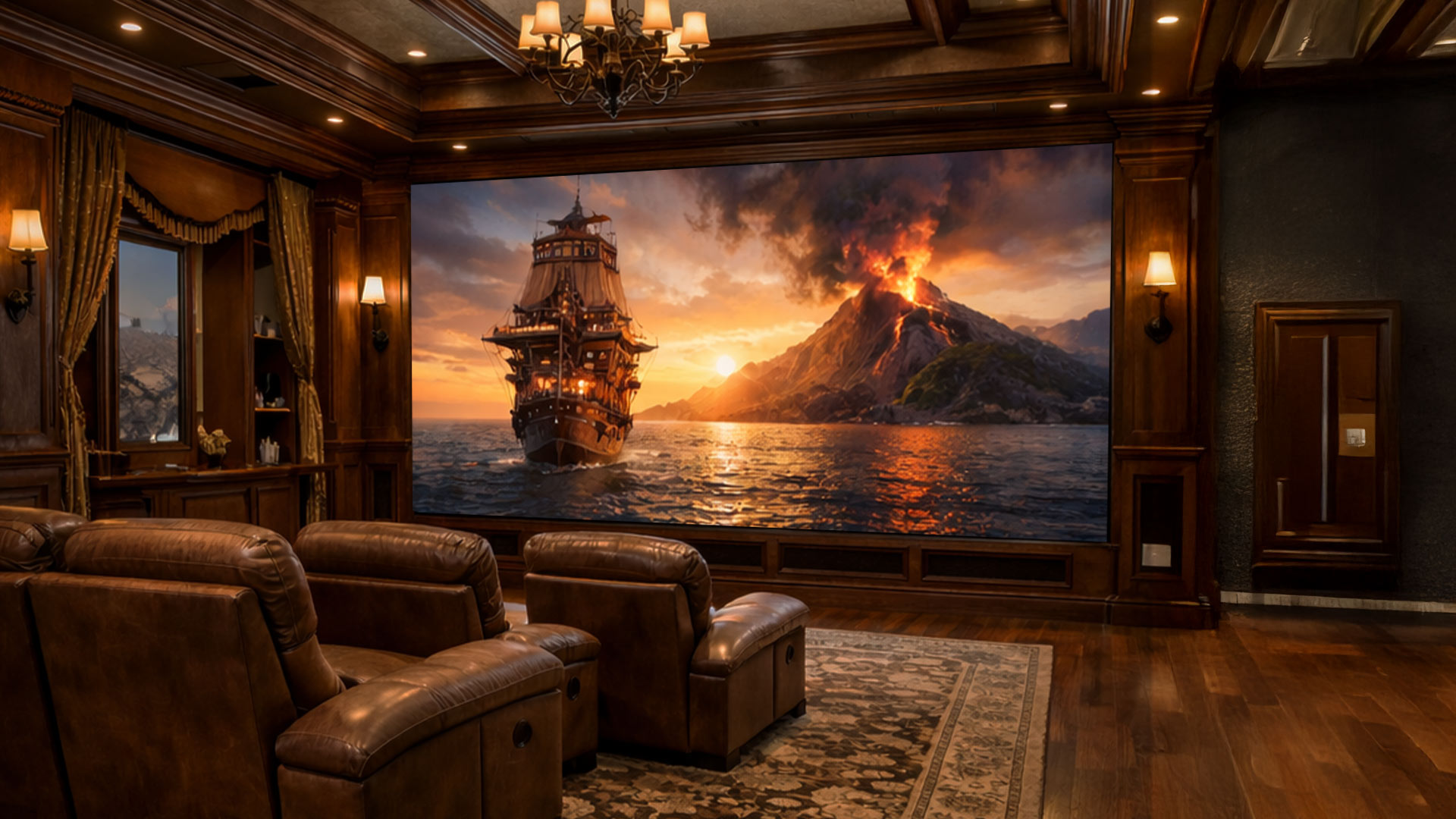

Redefine what a private theater can feel like. The LED Market P1.25mm 10.5′ x 6.3′ LED wall is designed for high-end home cinemas where image precision, immersive scale, and seamless integration are non-negotiable. Whether you’re building a luxury media room, a dedicated screening space, or a next-generation entertainment lounge, this ultra-fine pitch LED solution delivers cinematic performance inside your own home.
specs
Pixel Pitch: 1.25
Pixel Density: 512 x 384 per panel
High Refresh Rate: 7680Hz
LED Configuration: 3-in-1 SMD1010 LED
Size: 640 x 480 x 75 mm / 25.2" x 18.9" x 3"
Weight: 10 kg
Full Front Service: Magnetic Modules
Module Quantity: 6 per panel 320 x 160mm
at Close Viewing Distance
Home theaters place viewers closer to the screen than commercial venues. With an ultra-tight pixel pitch (1.53mm) and an optimal viewing distance of approximately 3 feet, this LED display produces exceptionally smooth imagery with virtually no visible pixel structure.
Distance 3ft
1.25MM
True home cinema experiences depend on fluid motion and accurate synchronization. Equipped with the NovaStar A8s sending card at 7680 Hz, this display provides high refresh performance that eliminates flicker and motion artifacts.
A home cinema should feel elegant; not technical. This system features full front service access with magnetic modules, allowing maintenance or upgrades without dismantling walls or cabinetry. The modular architecture keeps servicing discreet and efficient, preserving the refined aesthetic of your entertainment space. At approximately 10 kg per panel, installation remains manageable while maintaining structural stability.
Methods of Installation
Seamless Installation for Custom Home Theaters
An option for flexible or multi-purpose entertainment areas where mobility or staged configurations are preferred.
Perfect for permanent installations in dedicated theater rooms, media lounges, or private screening spaces. This method creates a seamless, built-in appearance.
For advanced residential designs using truss or suspended framing, this approach allows precise alignment and integration with lighting and acoustic systems.
Mirackle: With USA-based inventory and nationwide shipping, delivery timelines remain efficient. LED Market provides 24/7 U.S.-based support to assist with setup, configuration, and long-term performance—ensuring your home cinema operates flawlessly.
Our LED panels feature reinforced corners and protective caps, ensuring enhanced durability and safety during transport and installation. This innovative design reduces the risk of damage, extends the lifespan of the panels, and minimizes maintenance needs, making them ideal for both indoor and outdoor applications.
All components are stocked in the USA, ensuring fast access to parts and dependable post-installation support. The system supports Composite, S-Video, Component, VGA, DVI, HDMI, and HD-SDI inputs; making integration with AV receivers, media servers, gaming consoles, and streaming devices straightforward.
Turn-Key Packages
Turn-Key
Packages
5-Year Warranty
5-Year
Warranty
Technical Support
Technical
Support
Package Includes
LED video tiles
for rigging (*)
included
Link Cables
link cables
Edison Cables
cable
Modern home theaters demand more than projection; they require clarity, scale, and technological refinement. The LED Market P1.25mm 10.5′ x 6.3′ LED Displays deliver immersive performance, precise detail, and long-term reliability for discerning homeowners who want a true cinematic experience.
Bring the big screen home; without compromise.
technical specifications
- Full Front Service / Magnetic Modules
- Turn-key solution
- Easy installation
- Ground support compatible (sold separately)
- Download full specifications here
- Technical support available
- 5-year warranty included for all parts
- USA based
- In stock
- Operation Power: 100~240V 50-60Hz
- Max. Power Consumption: 200W/per panel
- Ave. Power Consumption: 120W/per panel
- Connections Power/Data: Locking power In/Out; Data EtherCon In/Out
- Control Mode: NovaStar Synchronous System with Control via DVI
- Frame Update Frequency: 50-60Hz
- Scan Mode: 1/28
- Refresh Rate: 7680Hz
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Brightness Correction: Pixel, Module, Cabinet
- Pixel Pitch: 1.53mm
- High Refresh Rate: 7680Hz
- Full Front Service / Magnetic Modules
- Novastar A8s receiving card
- LED Configuration: 3-in-1 SMD1010 LED
- Pixel Density: 512 x 384 per panel
- Size: 640 x 480 x 75 mm / 25.2″ x 18.9″ x 3″
- Module Quantity: 6 per panel 320 x 160mm
- Weight: 10Kg
- Brightness: 1200 NITS
- View Angle: Horizontal 160°/Vertical 160°
- Distance: 3ft.
- Brightness Adjustment: 0~100% 100 Levels
- (20) NovaStar P1.25mm Indoor LED video tiles
- (1) Video Processor Vx1000 with HDMI, DVI
- (1) NovaStar Mctrl300 sending card
- (5) Hanging bars for rigging (*)
- (7) Cat6 25ft cable
- (20) Data Cat6 link cables
- (20) Locking Power Link Cables
- (3) Locking Power to Edison Cables
- Spare parts included
- Operating Life: 100,000 Hours
- Protection Level: IP45 (Front and Back)
