Led Wall Panels Display
13.1' x 6.6' FT
The best advertisements will now be better displayed with this new 13.1 ′ x 6.6 ′ P2.97mm led video wall screen with highly visible and easy-to-grasp screens.
specs
Pixel Pitch: 2.97
Pixel Density: 168 x 336 per panel
High Refresh Rate: 7680Hz
LED Configuration: King-Light SMD1415
Size: 500 x 1000 x 82.5 mm / 19.7″ x 39.4″ x 3.25″
Weight: 13 kg

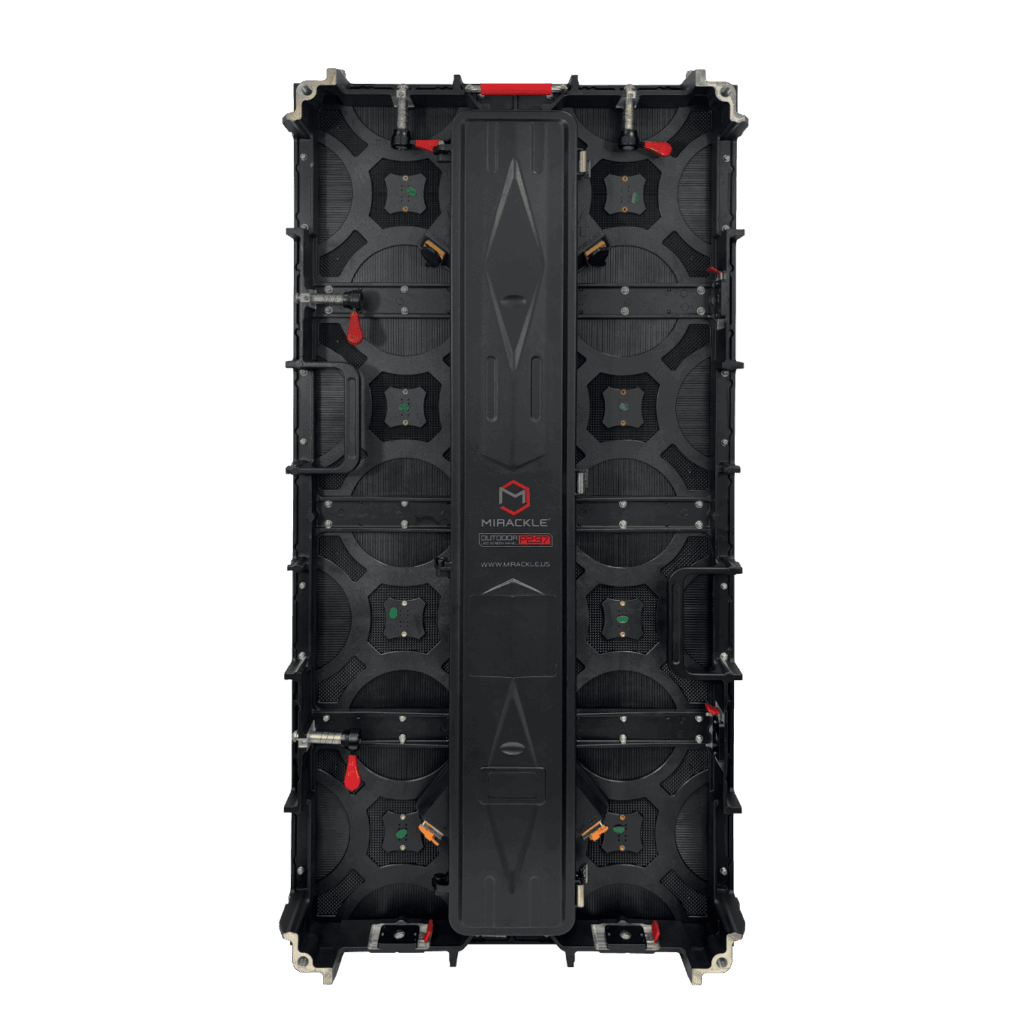

Back Service
Distance
The clarity of the product is enhanced by its 2.97mm pixel pitch, which is the distance between each pixel, providing optimal content appreciation from about 10 feet away.
Distance 10ft
2.97MM
Our Mirackle LED panels exclusively use the NovaStar board. This P2.97mm has an MRV208-1 that supports various functions with the highest resolution and enhances the viewing effect and user experience
Our magnetic module system is designed to simplify the assembly, repair, and replacement of LED display components. Each module is equipped with strong magnets, allowing for quick and tool-free installation. Modules can be easily removed manually or with a special tool, ensuring hassle-free maintenance and minimizing downtime.
Methods of Installation
Methods of installation
The most common support and, above all, the most stable considering the type of construction where it is mounted,
since it is screwed through the holes included in our
Mirackle LED screen panels.
Modular structure for ground-supported LED screen system with bar and ladder truss designs with height and flexibility configurations.
Compatible with all Mirackle LED video panels
Made from heavy-duty aluminum, it's perfect for an overhead truss system, a ceiling grid, a crane, or any other construction that needs to be supported from above. Compatible with all Mirackle LED panels.

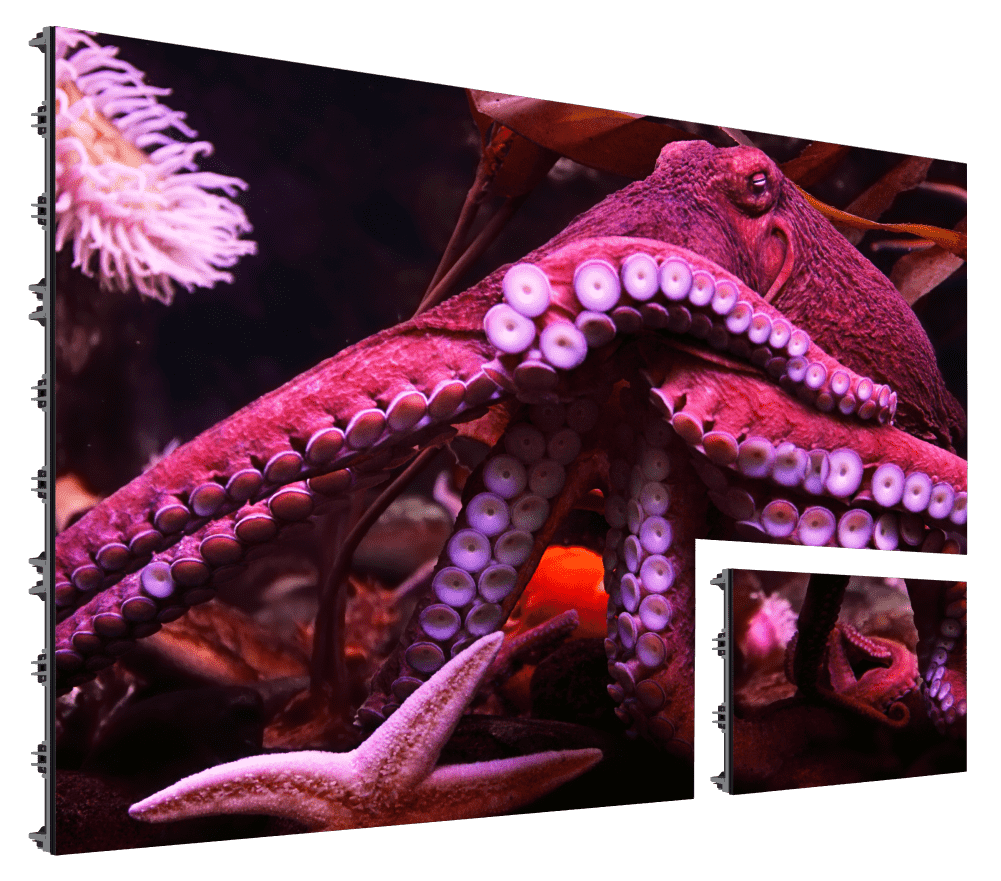

They are made up of 16 perfect 8×2 tiles in which each one measures 1000x500mm and pixel density is 128 x 256 for each of the panels that make up this product.
The dimensional ratio or aspect ratio of this product is 2: 1 therefore the balanced panoramic proportions tend to be twice as wide as they are high, thus offering a more visible image and, adding that the distance from the audience to the pixel is 10 feet, there is no doubt that the uptake of the broadcast audiovisual material will be 100%, whether on public roads, business meetings, Sunday meetings, etc.
Our LED panels feature reinforced corners and protective caps, ensuring enhanced durability and safety during transport and installation. This innovative design reduces the risk of damage, extends the lifespan of the panels, and minimizes maintenance needs, making them ideal for both indoor and outdoor applications.
As a convenience to our customers, shipping cost is included in the final price of each package. We also include a 5-year warranty on spare parts, to grant you a greater peace of mind. Not to mention, Technical support will be provided via phone call. seven days a week.
Turn-Key Packages
Turn-Key
Packages
5-Year Warranty
5-Year
Warranty
Technical Support
Technical
Support
Package Includes
Double LED video tiles
for rigging (*)
included
Link Cables
link cables
Edison Cables
cable
Thanks to the hanging bars that this product offers, the video panels have the ability to adapt to any rigorous wall that has been thought strategically placed before starting the event that will gather a large number of potential clients or Christian listeners .
In addition to delivering the panels already installed and at the door of the home, the company of this double outdoor led video wall screen includes in the package a warranty for a period of 5 Year for each of the pieces that make up this product and the entire provision of the technical maintenance service.
Technical Specifications
- Operation Power: 100~240V 50-60Hz
- Max. Power Consumption: 260W/per panel
- Ave. Power Consumption: 130W/per panel
- Connections Power/Data: Locking power In/Out; Data EtherCon In/Out
- Control Mode: NovaStar Synchronous System with Control via DVI
- Frame Update Frequency: 60Hz
- Scan Mode: 1/21s
- Refresh Rate: 7680Hz
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Brightness Correction: Pixel, Module, Cabinet
- Pixel Pitch: 2.97mm
- IP65
- LED Configuration: King-Light SMD1415
- Pixel Density: 168 x 336 per panel
- Size: 500 x 1000 x 82.5 mm / 19.7″ x 39.4″ x 3.25″
- Module Quantity: 8 per panel 250 x 250mm
- Weight: 28.6 lb / pc – 13 kg
- Brightness: 5500 NITS
- View Angle: Horizontal 140°/Vertical 140°
- Distance: 10 ft (3 m)
- Brightness Adjustment: 0~100% 100 Levels
- (16) NovaStar P2.97mm Outdoor LED video tiles
- (1) Mi-1000 Video Processor with HDMI, DVI and VGA Inputs
- (8) Hanging bars for rigging (*)
- (1) Cat6 25ft cable
- (16) Data Cat6 link cables
- (16) Locking Power Link Cables
- (3) Locking Power to Edison Cables
- Spare parts included
- Operating Life: 100,000 Hours
- Protection Level: IP65 (Front and Back)
